Cooking zones

2 flex induction cooking areas. Small area: 7 1/2" x 9" (2200 W, with booster 3700 W), Large area: 15" x 9" (3300 W, with booster 3700 W).

Operation

Control knobs with illuminated
ring, cooking zone and output level
markings.
Electronic power control in 17 output levels.
User friendly control with bi-coloured display (white / orange).

Features

Flex function for rectangular cooking areas.
Frying sensor function.
Booster function.
Stopwatch.
Short-term timer.
Options menu.
Power management.
Cooktop-based ventilation control (with suitable hood).
Home network integration for digital services (Home Connect) wireless via WiFi.
The use of the Home Connect functionality depends on the Home Connect services, which are not available in every country. For further information please check: home-connect.com.

Safety

Operation indicator.
Pot detection.
Digital 2 stage residual heat indicator
Safety shut-off.

Planning notes

Depending on the type of installation - surface- or flush-mounted, with or without cover - the specific location of the cut-out and the control knob positions may vary.
The horizontal positioning of the knobs may be aligned with the specific cooking areas.
The adjacent drawing "Installation of the control knob" must be observed if the panel is more than 1" thick. There must be a recess at the rear for proper electronic knob installation.
If combining several Vario appliances of the 400 series, a connection strip VA 420 must be placed between the appliances. Depending on the type of installation, the corresponding connection strip must be provided.
The bearing capacity and stability,
in the case of thin countertops in
particular, must be supported using
suitable substructures. Take into
account the appliance weight and
additional loads.
Additional instructions for flush mounting:
Flush installation is possible in countertops made of stone, synthetics or solid wood. Heat resistance and watertight sealing of the edges must be observed. For other materials, please consult with your countertop manufacturer.
The groove must be continuous and even, so that uniform placing of the appliance on the gasket is ensured. Do not use discontinuous lining.
The joint width may vary due to size tolerances of the combinations and of the countertop cut-out.
If installing several appliances in individual cut-outs allow for a division bar of inimum 1 " (50 mm) between the individual cut-outs.
Operates with magnetic (induction)
iron pots and pans only. For an optimal
heat distribution, the use of flat bottom
cookware is recommended.
Appliance can be snapped into the countertop from above.
Appliance weight: approx. 12 kg.

Rating

Total rating: Connected load: 3120 W
Plan for a 59 1/16" connecting cable
without plug (hardwire required).
Power consumption standby/display off 0.5 W.
Power consumption standby/network 1.4 W.
Please check the user manual for how to switch off the WiFi module.
Total Amps: 15 A.
208 - 240 V / 60 Hz.

Flex function for combining the rectangular cooking areas
Free positioning of cookware inside combined cooking areas
Frying sensor function for temperature control in pans
Easy control of all functions with bi-coloured display
Solid stainless steel control knobs

Please enter your delivery postal code

Please enter a valid post code

Your closest store based on postal code Update

Regular Hours:

Shopping Cart

Shopping Cart

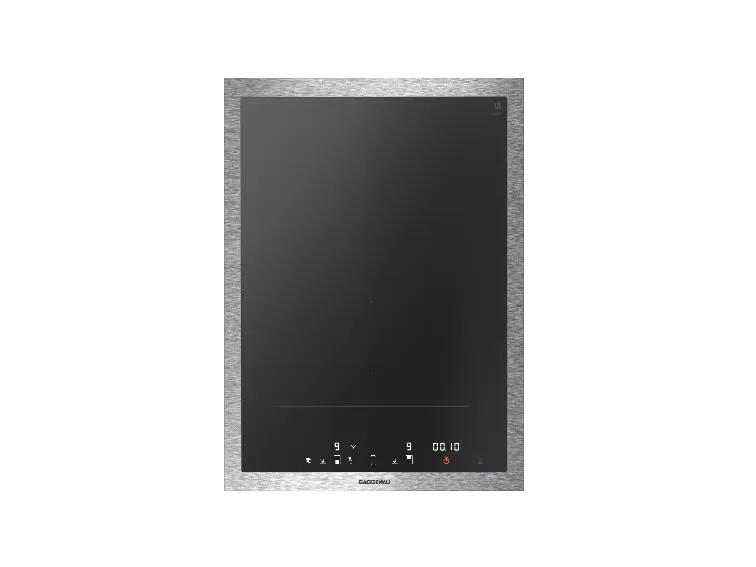

Gaggenau Cooktop-VI422613
