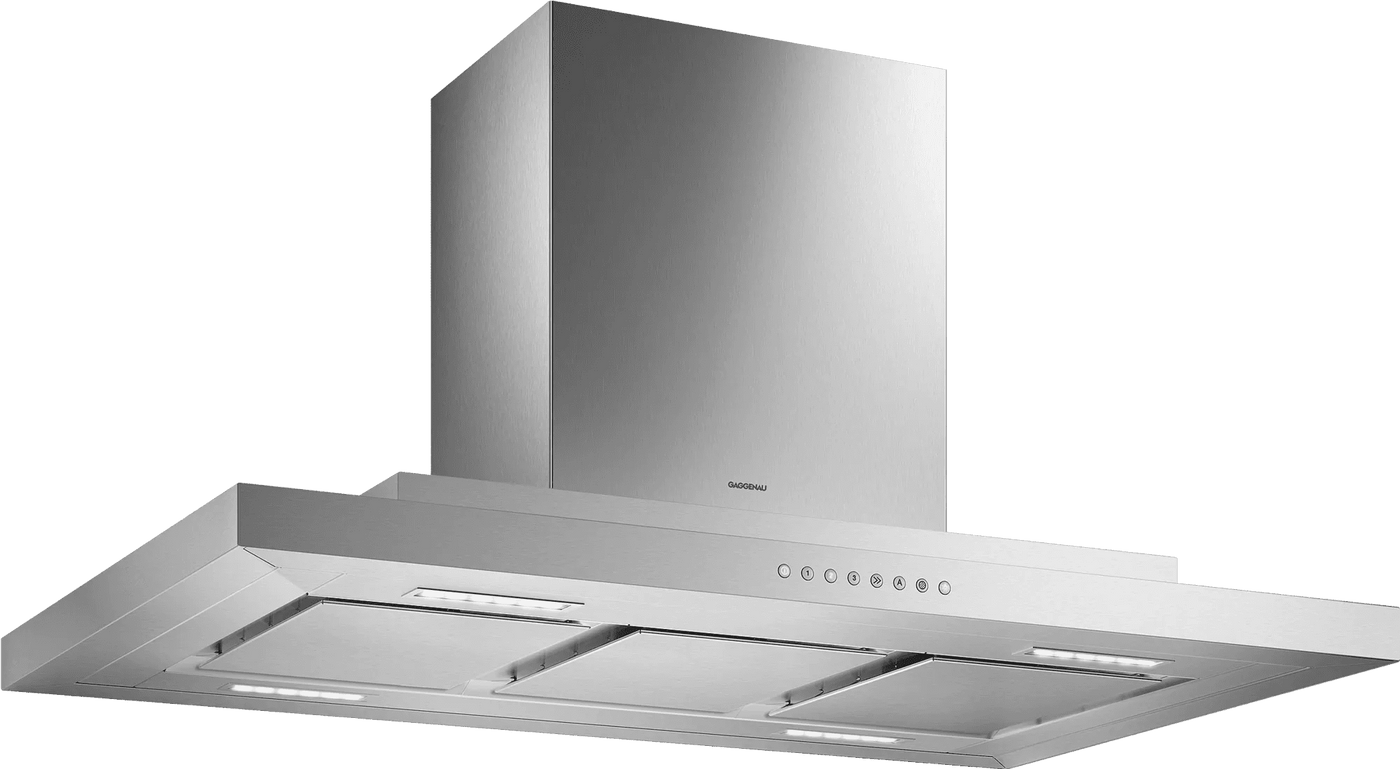

Product Description
Output

• Odor reduction recirculation: 95%.

• 3 electronically controlled power levels and 1 intensive mode.
• Grease filter saturation indicator.
• Patented rim extraction filter, dishwasher-safe.
• Airflow-optimised interior for efficient air circulation.
• The package includes an one-way flap.

• The package includes the two-part chimney with the dimensions from 2' 1 3/4" (654 mm) to 2' 8 13/16" (834 mm). Individual planning solutions can be implemented using the special accessory chimney extension AD 200 322 or by shortening the lower edge of the inner chimney.
• Clearance above gas appliances min. 76 cm (more than total load gas 12 kW min. 70 cm).
• Clearance above electric appliances min. 28".
• The air recirculation module with activated charcoal filter can be installed on the inner chimney.
• When installing a ventilation hood with air extraction mode and a chimney-vented fireplace, the power supply line of the ventilation appliance needs a suitable safety switch.

• Total Amps: 3 A.
• 110 - 127 V / 60 Hz.

• Classic Gaggenau design
• Highly efficient extraction of cooking vapours
• Low-noise fan
• Patented filter technology with high grease absorption
• Rim extraction filter with flat and easy-to-clean stainless steel underside

Dimensions
Width: 39.5" (100.3 cm) Height: 36.5" (92.7 cm)
