Product Description

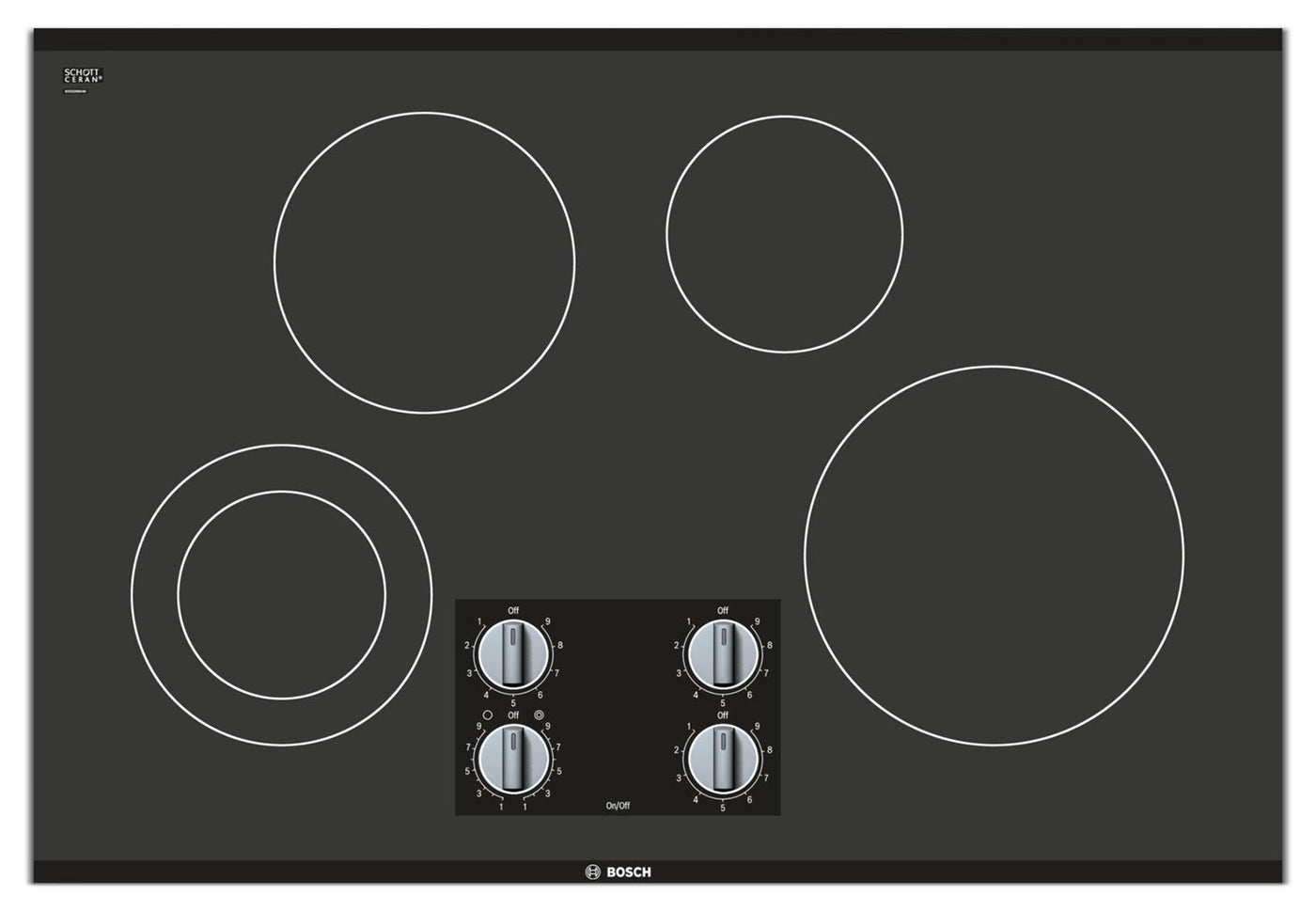

Feel like a pro when you use this Bosch 500 series electric cooktop. With four burners, you can cook everything you need at once without waiting for space on the cooktop. A dual burner allows you to customize the size of your element to a small pan or a large pot, while the powerful 2,500-watt burner boils water in a flash. Created with a seamless design, this sleek cooktop enhances the modern look of your kitchen.
Dimensions
Width: 31" (78.7 cm) Height: 4.25" (10.8 cm) Depth: 21.25" (54.0 cm)
Shipping Dimensions
Width: 37.88" (96.2 cm) Height: 7.88" (20.0 cm) Depth: 24" (61.0 cm)
Weight
34.00 lbs (15.4 kg)
Key Features:
- Dual Element
- Powerful 2,500-Watt Burner
- Two-Level Heat Indicator
- Seamless Design
Dual Element
Customized to the size of your cookware, the dual element helps you save energy with a focused area for a small pot or pan, and an enlarged area for a bigger pot or pan.
Powerful 2,500-Watt Burner
Boil water quickly with the powerful, front-right 2,500-watt burner.
Two-Level Heat Indicator
Whether the cooktop is hot or just simply warm, the heat indicator notifies you to prevent harmful burns.
Seamless Design
Enjoy a sleek and modern look in your kitchen with the cooktop's seamless design.
Full Features and Specifications
General Properties:
- Knob Material: Plastic
Burner/Element Performance:
- Total Number of Cooktop Burners: 4
- Location of First Heating Element: Front Left
- Power of First Heating Element: 0.7 kW, 1.7 kW
- Dimension of First Heating Element: 5", 7"
- Location of Second Heating Element: Back Left
- Power of Second Heating Element: 1.8 kW
- Dimension of Second Heating Element: 7"
- Location of Third Heating Element: Back Right
- Power of Third Heating Element: 1.2 kW
- Dimension of Third Heating Element: 6"
- Location of Fourth Heating Element: Front Right
- Power of Fourth Heating Element: 2.5 kW
- Dimension of Fourth Heating Element: 9"
- Sealed Burners: No
Certifications:
- Approval Certifications: CSA
Installation Requirements:
- Watts: 9,000
- Current: 40/40 A
- Volts: 240/208
- Frequency: 60 Hz
- Plug Type: No Plug
- Energy Source: Electric
Additional Dimensions:
- Required Cut-Out Size: 34.88" W x 4" H x 20" D
- Minimum Distance from Counter Front: 2.25"
- Minimum Distance from Rear Wall: 2"
